Rethinking Tynell: The Real Story Behind His Adjustable Lighting Designs
The story begins with a single sentence.
In Paavo Tynell and Taito Oy, published by the Design Museum Helsinki in 2005 to accompany the exhibition of the same year, Tuula Poutasuo writes on page 47:
“All lamps were made according to the United States electric appliances regulations. Because the ceiling lamp was not allowed to hang supported by the electrical cord, Paavo Tynell designed a counterweight-operated lift mechanism, which became one of his trademarks.” This was in reference to the iconic A1965 lamp

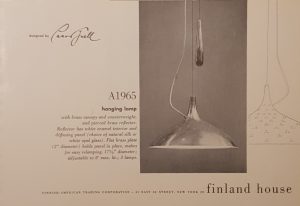

The iconic A1965 adjustable lamp
This statement, often repeated and rarely questioned, became the foundation of a widely accepted explanation for why Paavo Tynell developed his adjustable lighting mechanisms.
And yet, something doesn’t quite add up.
In the very same context, including the opening of Finland House and the associated catalogues, numerous lamps are clearly shown hanging freely by their cords, including models such as the 1994, 1995, 1996, 10157, 10138, 10129, and 10130. If such designs
were not allowed, why do they appear so consistently?

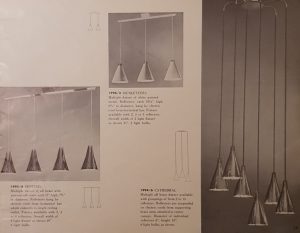

Model 1994, 1995, 1995 with the text clearly describing them as hanging from electric cords.
So, what is the deal here? Why would certain models be permitted to hang from cords, while others seemingly were not? The answer lies not in whether lamps could hang from cords, but in how those cords were used.
The story, in fact, begins with the adjustable models themselves. Tynell and Taito had already developed adjustable lamps in Finland prior to their introduction to the American market, including models such as 1054, 1055, or 1077.

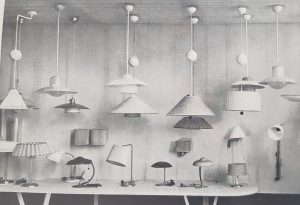

Adjustable models pre the counterweight design exhibited in Stockholm in 1941.

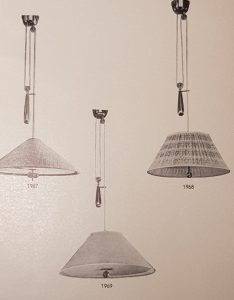

These early designs often relied on a ball mechanism in which the electrical cord itself played an active role in the adjustment which meant it was wrapped, tensioned, and subjected to friction. In some models, the counterweight was already used, but it also incorporated the cord itself in the mechanism. This was apparent in models like the A1998 and A1967, 1968, and 1969.
Adjustable models that incorporated the wire in the mechanism.
And this is where the problem emerged.
Mid-century American safety standards, shaped by Underwriters Laboratories and the National Fire Protection Association, did not prohibit lamps from hanging by cords. However, they imposed strict limitations on how flexible cords could be used.
According to long-standing provisions of the National Electrical Code, flexible cords were permitted for use with luminaires, but with clear limitations: “Flexible cords and cables shall not be used as a substitute for the fixed wiring of a structure.”
They were also not permitted where subject to physical damage or mechanical strain and had to be installed so that tension was not transmitted to electrical connections. In practical terms, this meant that while a lamp could hang from a cord, the cord itself could not function as part of a mechanical adjustment system.
This constraint became the cornerstone for one of Tynell’s most significant innovations.
Rather than relying on the cord, Tynell reimagined the entire adjustment system. The first models appeared with a counterweight mechanism that removed mechanical stress from the electrical cord entirely.

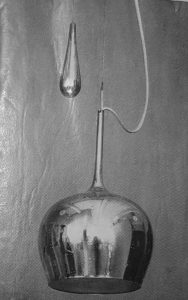

The model 1957 with the free hanging counterweight.

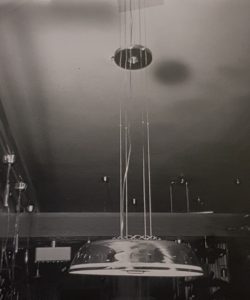

Early versions featured a freely hanging counterweight suspended on a metal wire, which was later refined through the introduction of guiding rails and pulley to stabilize movement and prevent contact with the cord.

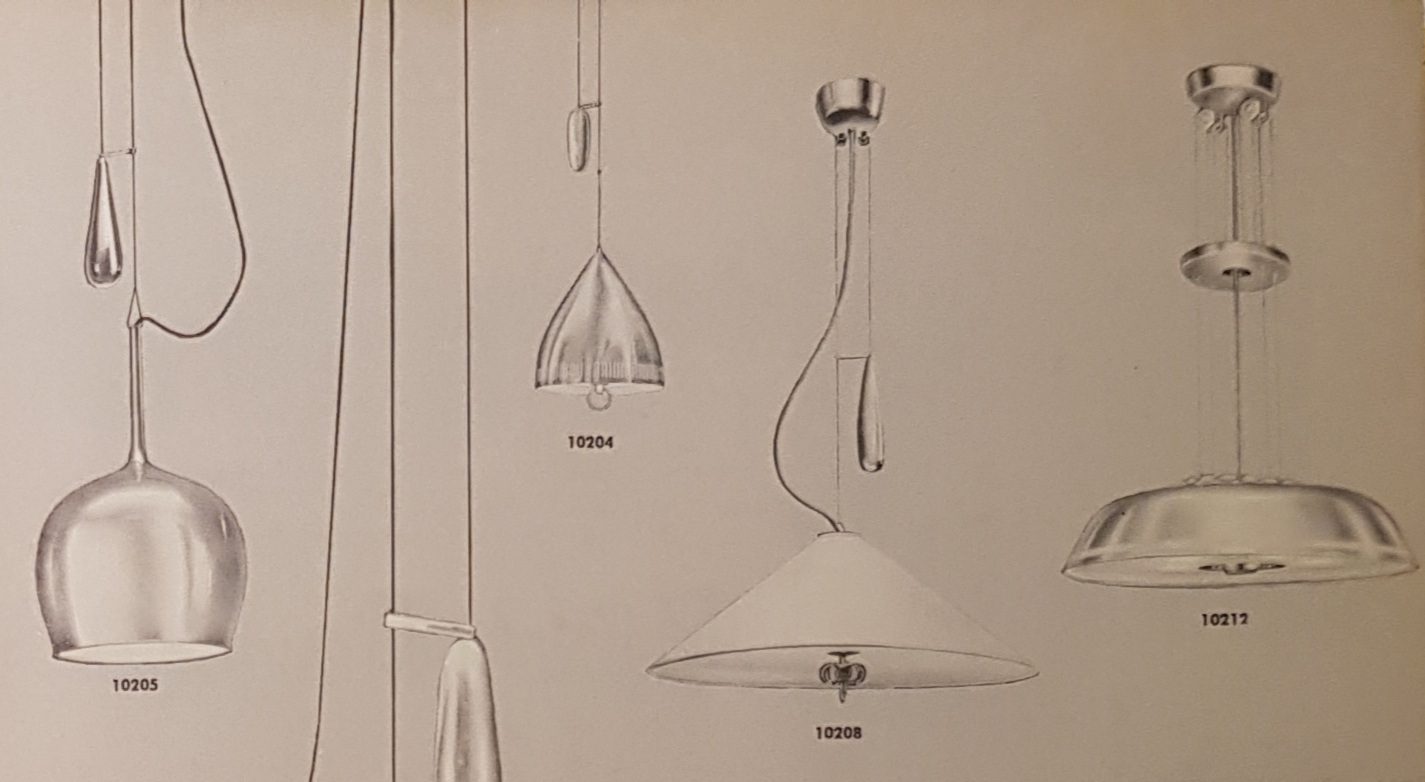

From this point onward, the development did not stop. Tynell went on to design a wide range of adjustable models like the 10206, 10223, and 10224, and many commissioned ones, each exploring new mechanical and aesthetic possibilities.
Adjustable models 10206, 10223, 10224
The counterweights themselves evolved into decorative elements; discs, barrels, and spring-integrated forms, transforming a technical necessity into a defining visual language.
Adjustable lamp with disc shaped counterweight.

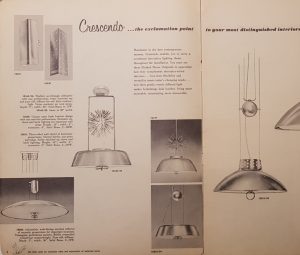

One issue, however, remained when reviewing images from the Finland House exhibitions and catalogues. Some lamps still appeared to feature the very ball mechanism that seemed to be at the root of the problem.
At closer inspection, the answer becomes clear. The ball itself was not a counterweight and was no longer part of the adjustment mechanism. In these models, such as the 1942 or 10113, the ball was described as; “a decorative brass sphere on stem” or “Ornamental brass ball”.

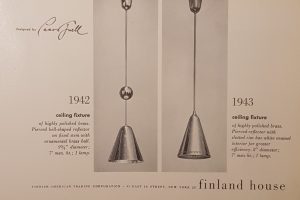

The model 1942 featuring a “fixed stem with ornamental brass ball.”
This subtle but crucial shift resolves the apparent contradiction. The form remains, but the function has changed.
It is this final piece that brings the entire narrative together. A compelling example of how form follows function, or perhaps more precisely in this case, how form follows the need to comply with regulation for function to exist at all.
This research emerged as part of my ongoing work in documenting Tynell’s designs. In the process, details begin to surface, insights, small inconsistencies, overlooked features, and technical decisions that reveal a much deeper story behind the designs.
What initially appears straightforward often turns out to be far more complex. And it is within this process that many of these hidden aspects begin to unfold.
There is still much to uncover. But each step brings us closer to understanding not just the Tynell designs themselves, but the genius thinking behind them and the conditions that shaped them.
References:
Finland House lighting catalogues
Taito catalogues no. 16, Helsinki 1936
Idman Hankkija catalogue, Helsinki 1940s
Idman catalogue no. 136, Helsinki 1954
Markkinat Messut ja Näyttelyt, Harry Röneholm. Helsinki Suomen messut 1945
Ornamo yearly book, 1952
Architecture and Design Museum Archives.
Paavo Tynell and Taito Oy. Marianne Aav, Eeva Viljanen, Poutasuo, Tuula, and others,
Design Museum Helsinki, 2005.
National Electrical Code (NEC), Article 400 – Flexible Cords and Cables.
Underwriters Laboratories (UL) Standards for Portable Luminaires (mid-20th century principles.)
Author: Shadi Haddadin
